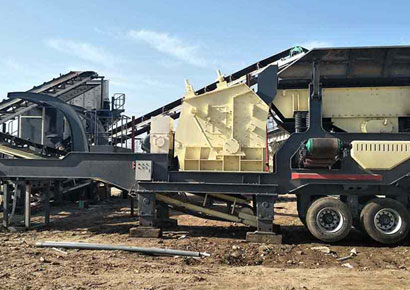

Mobile impact crusher is an integrated mobile crushing equipment composed of impact crushers and vibrating screen. It is easy to move, widely used in industries such as sand and gravel, mining, construction, cement, highway, and chemical industry, etc.
Production Capacity
30-900t/hInput Size
≤700mmOutput Size
≤40mm
The materials after the primary crushing of the jaw crusher are sent to the impact crusher by the conveyor for secondary crushing. The crushed materials are screened by the vibrating screen. The materials that meet the crushing requirements are output by the conveyor, and the materials that do not meet the requirements are output again. It enters the impact crusher to crush, and the circular vibrating screen forms a closed-circuit system to realize the cyclic crushing of materials. The finished materials are output by the conveyor for continuous crushing operations.
It can be directly operated, eliminating tedious infrastructure installation and labor time consumption
The feeding guard is hydraulically raised and lowered, which is convenient for loading and unloading, convenient for fixing, stable and reliable.
One person can operate, the work is more stable, the overall output is increased, and the finished product has complete specifications and good particle shape.
Switch freely between electtic power and diesel, keeping in good condition anytime and anywhere.
FTM938F1210, throughput 80-100t/h, more popular on the market.
FTM938F1214, FTM1149F1315, better choice for medium and large production needs.
30-50t/h, 60-80t/h, etc, usually for small production scale, with low costs.
100-130t/h, 150-200t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesWheel-type Mobile Impact Crusher
Tracked Impact Crusher
Model FTM938F1210 and FTM938F1214 and FTM1149F1315
| Model | FTM938F1210 | FTM938F1214 | FTM1149F1315 |
| Transportation length(mm) | 12000 | 12000 | 13900 |
| Transportation Width(mm) | 2550 | 2550 | 2900 |
| Transportation Height(mm) | 3900 | 3900 | 4450 |
| Maximum Length(mm) | 12500 | 12500 | 13900 |
| Maximum Width(mm) | 3250 | 3260 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW |
| iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model FTM938F1110 and FTM1349F1315
| Model | FTM938F1110 | FTM1349F1315 |
| Transportation length(mm) | 15450 | 15450 |
| Transportation Width(mm) | 2950 | 2950 |
| Transportation Height(mm) | 4500 | 4500 |
| Maximum Length(mm) | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3250 |
| Maximum Height(mm) | 5200 | 5200 |
| Weight(t) | 62 | 62 |
| Impact crusher | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 400 | 700 |
| Capacity(t/h) | 112 | 280 |
| Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
Model WT110 and WT110S
| Model | WT110 | WT110S | |
| Dimensions of Transmission Devices | Length | 14000mm | 17000mm |
| Width | 3000mm | 3200mm | |
| Height | 3600mm | 3600mm | |
| Weight | 40t | 45t | |
| Feeder | Hopper Volume | 3m³ | 5m³ |
| Loading Height | 3900mm | 4000mm | |
| Primary Screen | Power | 5.2kw | 6.12kw |
| Sieve Dimensions | 1040×924mm | 1040×924mm | |
| Crusher | Model | CI1110M | CI1315M |
| Inlet Dimensions | 1020×860mm | 1020×860mm | |
| Max.Feeding Size | 400mm | 400mm | |
| The Feeder at the Bottom | Hopper Volume | 0.8m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×8500mm | 1200×11000mm |
| Dumping Height | 3300mm | 3300mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×3600 | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 2900mm | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 4200mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 253kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1213 and WT1213S
| Model | WT1213 | WT1213S | |
| Dimensions of Transmission Devices | Length | 15500mm | 17000mm |
| Width | 3200mm | 3600mm | |
| Height | 3800mm | 3800mm | |
| Weight | 53t | 60t | |
| Feeder | Hopper Volume | 5m³ | 5m³ |
| Loading Height | 3900mm | 4100mm | |
| Primary Screen | Power | 6.12kw | 6.12kw |
| Sieve Dimensions | 1140×924mm | 1140×924mm | |
| Crusher | Model | CI1213M | CI1315M |
| Inlet Dimensions | 1320×900mm | 1320×900mm | |
| Max.Feeding Size | 500mm | 500mm | |
| The Feeder at the Bottom | Hopper Volume | 1m³ | 1.5m³ |
| Power | 5.2kw | 5.2kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm | 650×3500mm |
| Dumping Height | 2200mm | 2200mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1000×9900mm | 1200×11000mm |
| Dumping Height | 3500mm | 3500mm | |
| Secondary Screen | Power | ○ | ○ |
| Sieve Dimensions | ○ | 1500×4200 | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 3000mm | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 1400mm | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ | ○ |
| Dumping Height | ○ | 4500mm | |
| Iron Remover | Model | RCYQ-10 | RCYQ-10 |
| Diesel Engine | Power | 106kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 304kw | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT1315
| Model | WT1315 | |
| Dimensions of Transmission Devices | Length | 17000mm |
| Width | 3200mm | |
| Height | 3800mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 5m³ |
| Loading Height | 4000mm | |
| Primary Screen | Power | 6.12kw |
| Sieve Dimensions | 1240×930mm | |
| Crusher | Model | CI1315M |
| Inlet Dimensions | 1540×900mm | |
| Max.Feeding Size | 600mm | |
| The Feeder at the Bottom | Hopper Volume | 1.5m³ |
| Power | 6.12kw | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
650×3500mm |
| Dumping Height | 2400mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1200×11000mm |
| Dumping Height | 3800mm | |
| Secondary Screen | Power | ○ |
| Sieve Dimensions | ○ | |
| Belt Conveyors at the Bottom | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Transferring Belt Conveyor | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Belt Conveyors for Discharging Material | Dimensions (Width×Length) |
○ |
| Dumping Height | ○ | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 366kw |
| Ways of Controlling | Wired/Wireless (optional) | |
