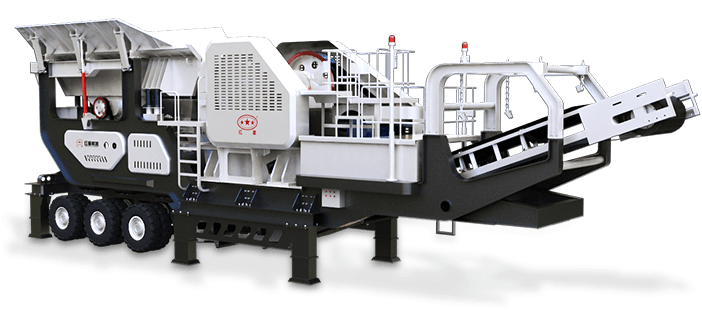

Mobile Stone Crusher
Mobile stone crusher Plant is a kind of stone crusher series and also the most common crusher in the stone crusher series.
Production Capacity
30-900t/hInput Size
≤750mmOutput Size
≤60mm
Welcome to visit our actory in China. If not convenient, factory visit online available.
Mobile stone crusher Plant is a kind of stone crusher series and also the most common crusher in the stone crusher series.
Production Capacity
30-900t/hInput Size
≤750mmOutput Size
≤60mm
The materials are uniformly transported into the crusher by the feeder. After the initial crushing by the jaw crusher, the closed circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The materials after primary crushing will be conveyed out by belt conveyor, thus forming continuous crushing operation.
It can be directly operated, eliminating tedious infrastructure installation and labor time consumption
The feeding guard is hydraulically raised and lowered, which is convenient for loading and unloading, convenient for fixing, stable and reliable.
One person can operate, the work is more stable, the overall output is increased, and the finished product has complete specifications and good particle shape.
Switch freely between electtic power and diesel, keeping in good condition anytime and anywhere.
Mobile jaw crusher, usually equipped with vibrating feeder, for primary crushing.
Mobile impact crusher, mobile cone crusher, usually with vibrating screen, for secondary fine crushing.
30-50t/h, 60-80t/h, etc, usually for small production scale, with low costs.
100-130t/h, 150-200t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesWheel-type Mobile Impact Crusher
Wheel-type Mobile Cone Crusher
Wheel-type Mobile Jaw Crusher
Model FTM938F1210 and FTM938F1214 and FTM1149F1315
| Model | FTM938F1210 | FTM938F1214 | FTM1149F1315 |
| Transportation length(mm) | 12000 | 12000 | 13900 |
| Transportation Width(mm) | 2550 | 2550 | 2900 |
| Transportation Height(mm) | 3900 | 3900 | 4450 |
| Maximum Length(mm) | 12500 | 12500 | 13900 |
| Maximum Width(mm) | 3250 | 3260 | 3250 |
| Maximum Height(mm) | 5100 | 5200 | 5200 |
| Weight(t) | 39 | 44 | 54 |
| Impact crusher | PE-1210 | PE-1214 | PF-1315 |
| Maximum Feeding Size(mm) | 350 | 350 | 500 |
| Capacity(t/h) | 70-130 | 100-180 | 130-250 |
| Vibrating Feeder | ZSW950×3800 | ZSW950×3800 | ZSW110×4900 |
| Main Belt Conveyor | B800×8.5M | B800×8.5M | B1000×9.5M |
| Side-opening Belt conveyor(optional) | B500×3.2m | B500×3.2m | B650×4m |
| Gensrt(optional) | 320KW | 320KW | 400KW |
| iron separator(optional) | RCYD(C)-8 | RCYD(C)-8 | RCYD(C)-10 |
Model FTM938F1110 and FTM1349F1315
| Model | FTM938F1110 | FTM1349F1315 |
| Transportation length(mm) | 15450 | 15450 |
| Transportation Width(mm) | 2950 | 2950 |
| Transportation Height(mm) | 4500 | 4500 |
| Maximum Length(mm) | 15450 | 15450 |
| Maximum Width(mm) | 3250 | 3250 |
| Maximum Height(mm) | 5200 | 5200 |
| Weight(t) | 62 | 62 |
| Impact crusher | HD1110 | HD1315 |
| Maximum Feeding Size(mm) | 400 | 700 |
| Capacity(t/h) | 112 | 280 |
| Vibrating Feeder | ZSW130×4900 | ZSW130×4900 |
| Main Belt Conveyor | B800×11M | B1200×11M |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 320KW | 440KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-12 |
| Model | FTM3S185GYS300 | FTM3S216GYS400 | FTM3S216HP300 |
| Transportation length(mm) | 14500 | 15000 | 16000 |
| Transportation Width(mm) | 3000 | 3000 | 4550 |
| Transportation Height(mm) | 4400 | 4500 | 4600 |
| Maximum Length(mm) | 17000 | 16000 | 17000 |
| Maximum Width(mm) | 3400 | 3900 | 6900 |
| Maximum Height(mm) | 5800 | 6500 | 4700 |
| Weight(t) | 34.5 | 49.5 | 41 |
| Tire Configuration | Dualaxial | Triaxial | Triaxial |
| Cone crusher | GYS300 | GYS400 | HP300 |
| Discharging belt Conveyor | B650×15M×2 | B800×15M×2 | B800×15M×2 |
| Return belt conveyor | B650×14M | B800×14M | B800×16M |
| CONveyor Belt For Final Products | B500×15M | B800×6M | B650×15M×2 |
| Under Virbrating Screen | B800×7M | B800×8M | B800×9M |
| Vibrating Screen | 3YK1854 | 3YK2160 | 3YK2160 |
Model FTM938HD86 and FTM1149HD98
| Model | FTM938HD86 | FTM1149HD98 |
| Transportation lenght(mm) | 12600 | 13500 |
| Transportation Width(mm) | 2600 | 2700 |
| Transportation Height(mm) | 3870 | 4200 |
| Maximum Lenght(mm) | 12500 | 14000 |
| Maximum Width(mm) | 4100 | 4500 |
| Maximum Height(mm) | 4100 | 4900 |
| Weight(t) | 39 | 57 |
| tIRE Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD86 | HD98 |
| Maximum Feeding Size(mm) | 500 | 550 |
| Discharge opening range | 50-150 | 75-175 |
| Capacity(t/h) | 85-275 | 110-350 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
| Gensrt(optional) | 200KW | 250KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model FTM1349HD110 and FTM1349HD125
| Model | FTM1349HD110 | FTM1349HD125 |
| Transportation lenght(mm) | 14500 | 15200 |
| Transportation Width(mm) | 2800 | 2900 |
| Transportation Height(mm) | 4450 | 4500 |
| Maximum Lenght(mm) | 16100 | 16700 |
| Maximum Width(mm) | 5100 | 5100 |
| Maximum Height(mm) | 5000 | 5300 |
| Weight(t) | 55 | 65 |
| Tire Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD110 | HD125 |
| Maximum Feeding Size(mm) | 660 | 800 |
| Discharge opening range | 100-200 | 125-225 |
| Capacity(t/h) | 215-510 | 280-650 |
| Vibrating Feeder | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.
We provide full and professional service system, including customized solution, fast delivery, spare parts, product warranty, product installation, etc.
with over 200 kinds of small, medium and large heavy processing equipment, such as vertical lathe,edge planer, large boring machine, bending roll, etc.
