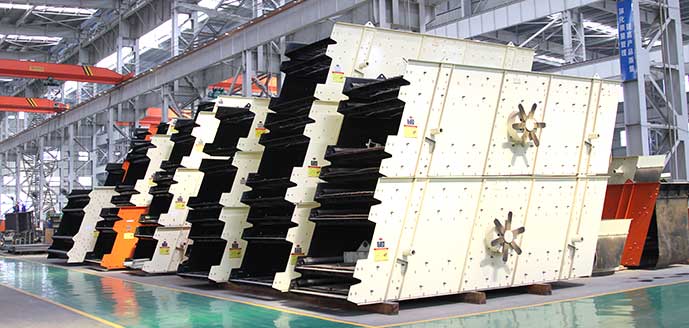

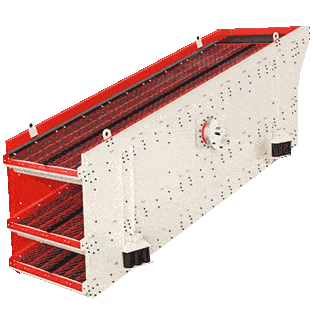

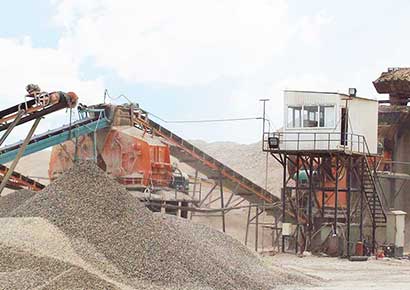

Vibrating screen does circular movement in work, and it is a new high efficiency vibrating screen machine with multiple layers. It is used for minerals particle size grading, necessary in mining, quarry and construction industries.
Production Capacity
10-700m³/hInput Size
≤200mmOutput Size
≤40mm

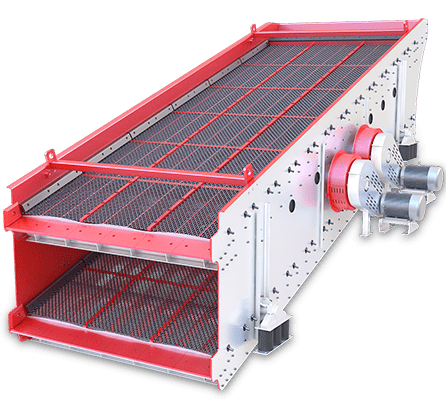

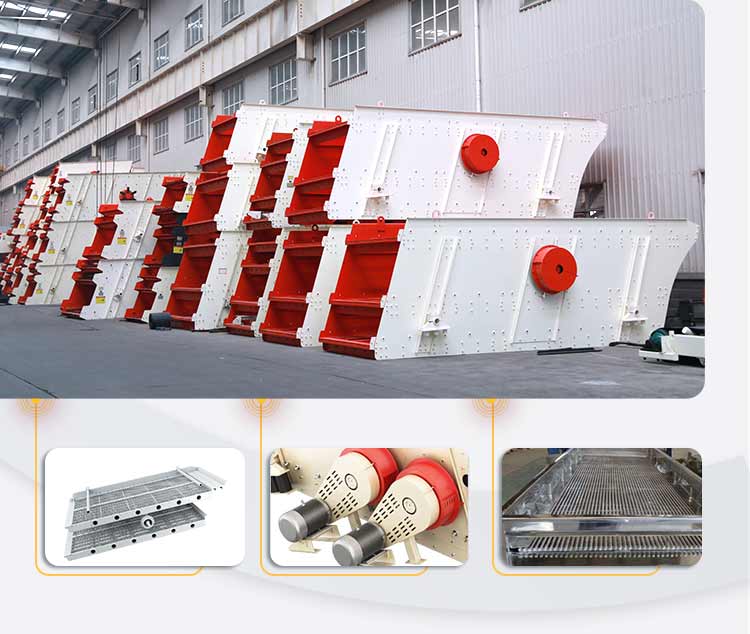

The vibrating screen is mainly composed of a screen box, a vibration exciter, a suspension (or support) device and a motor. The motor drives the main shaft of the exciter to rotate through the V-belt, and the screen box is vibrated due to the centrifugal inertia force of the unbalanced weight on the exciter. By changing the eccentric shaft of the exciter, different amplitudes can be obtained.
Due to the strong vibration of the screen box, the problems of material blocking the screen holes is reduced, so that the screen has a higher screening efficiency and productivity.
The structure is simple and the screen surface is easy to disassemble and replace.
A small amount of wearable parts are made of super hard and wear-resistant materials, which is especially suitable for easy replacement of accessories.
2YK1230, 3YK1230, 2YK1237, suitable for small prodution scale.
3YK1854, 4YK1854, 2YK2160, suitable for medium and large production scale.
10-20m³/h, 20-50m³/h, etc, usually for small production scale, with low costs.
60-100m³/h, 100-150m³/h, 250-300m³/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesVibrating Screen
HX Series Vibrating Screen
| Model | Sieve Layer | Sieve Area (㎡) |
Processing capacity (m³/h) |
| 2YK1230 | 2 | 7.2 | 12-78 |
| 3YK1230 | 3 | 10.8 | 13-80 |
| 2YK1237 | 2 | 8.88 | 15-86 |
| 3YK1237 | 3 | 13.32 | 16-90 |
| 2YK1548 | 2 | 14.4 | 22.5-162 |
| 3YK1548 | 3 | 21.6 | 22.5-162 |
| 4YK1548 | 4 | 28.8 | 22.5-162 |
| 2YK1854 | 2 | 19.44 | 32-312 |
| 3YK1854 | 3 | 29.16 | 32-312 |
| 4YK1854 | 4 | 38.88 | 32-336 |
| 2YK2160 | 2 | 25.2 | 50-475 |
| 3YK2160 | 3 | 37.8 | 50-475 |
| 4YK2160 | 4 | 50.4 | 50-497 |
| 2YK2460 | 2 | 28.8 | 65-550 |
| 3YK2460 | 3 | 43.2 | 70-620 |
| 4YK2460 | 4 | 57.6 | 80-680 |
| 2YK2866 | 2 | 31 | 70-650 |
| 3YK2866 | 3 | 47 | 80-700 |
| 4YK2866 | 4 | 62 | 90-750 |
| 2YK2873 | 2 | 39.2 | 70-680 |
| 3YK2873 | 3 | 58.8 | 80-720 |
| 4YK2873 | 4 | 58.8 | 90-950 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max.Feeding Size (mm) | Processing capacity(t/h) |
| 2HX1545 | 200 | 45-500 |
| 3HX1545 | 200 | 55-500 |
| 4HX1545 | 200 | 65-500 |
| 2HX1855 | 200 | 55-600 |
| 3HX1855 | 200 | 65-600 |
| 4HX1855 | 200 | 75-600 |
| 2HX2165 | 200 | 65-700 |
| 3HX2165 | 200 | 75-700 |
| 4HX2165 | 200 | 85-700 |
| 2HX2465 | 200 | 80-800 |
| 3HX2465 | 200 | 90-800 |
| 4HX2465 | 200 | 100-800 |
| 2HX2765 | 200 | 100-900 |
| 3HX2765 | 200 | 110-900 |
| 4HX2765 | 200 | 120-900 |
| 2HX3065 | 200 | 110-1200 |
| 3HX3065 | 200 | 120-1200 |
| 4HX3065 | 200 | 130-1200 |
| 2HX3075 | 300 | 120-1300 |
| 3HX3075 | 300 | 130-1300 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
