Cone crusher has the characteristics of large crushing ratio, high efficiency, high processing capacity, low operating cost, convenient adjustment, economical use, etc. It is suitable for various ores and rocks with medium and medium hardness.
Production Capacity
20-400t/hInput Size
≤205mmOutput Size
≤50mm

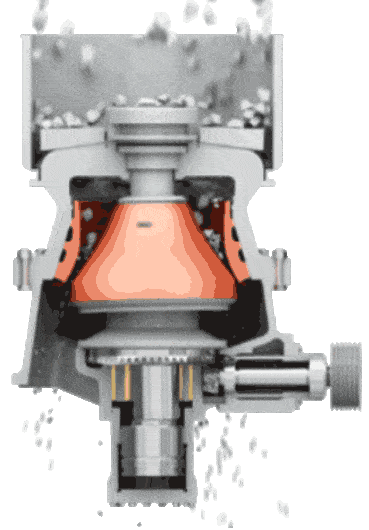

When the cone crusher is working, through the pulley or coupling, the motor rotates, the drive shaft and the cone of the cone crusher, under the force of the eccentric sleeve, rotate around a fixed point. As a result, the cone crushing wall is sometimes close to the surface of the mortar wall fixed on the adjusting sleeve, sometimes away from it, so that the material is continuously impacted, squeezed and bent in the crushing cavity to realize the crushing of the material.
The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.
Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.
Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.
Symons cone crusher, symons 3ft, symons 7ft, etc, more popular in market.
Hydraulic cone crusher, single-cylinder hydro cone crusher, higher crushing efficiency and capacity.
30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.
80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesSymons Cone Crusher
Multi-cylinder Hydraulic Cone Crusher
Single-cylinder Cone Crusher
| Type | Model | Feeding size（mm） | Processing capacity（t/h） |
| PSG 1300 | 1313 | 137 | 109-181 |
| 1321 | 210 | 132-253 | |
| 1324 | 241 | 172-349 | |
| 1306 | 64 | 36-163 | |
| 1308 | 89 | 82-163 | |
| 1310 | 105 | 109-227 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Cavities | Maximum Feeding size（mm） | Capacity（t/h） |
| HPM200 | C1 | 145 | 160~250 |
| C2 | 100 | 145~250 | |
| C3 | 75 | 120~250 | |
| F1 | 60 | 108~210 | |
| F2 | 45 | 81~210 | |
| HPM300 | C1 | 190 | 230~445 |
| C2 | 170 | 200~445 | |
| C3 | 120 | 180~445 | |
| F1 | 85 | 160~220 | |
| F2 | 40 | 140~220 | |
| HPM400 | C1 | 240 | 270~630 |
| C2 | 160 | 243~630 | |
| C3 | 90 | 210~630 | |
| F1 | 75 | 162~370 | |
| F2 | 40 | 126~370 | |
| HPM500 | C1 | 270 | 365~790 |
| C2 | 230 | 328~790 | |
| C3 | 165 | 280~790 | |
| F1 | 105 | 202~450 | |
| F2 | 75 | 158~450 | |
| HPM800 | C1 | 280 | 616~1100 |
| C2 | 240 | 522~1100 | |
| C3 | 175 | 380~1100 | |
| F1 | 125 | 328~730 | |
| F2 | 75 | 270~730 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
SC-S series of single cylinder hydraulic cone crusher parameters:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100S | C1 | 250 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 267-605 |
| C2 | 400 | 225-515 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 38 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 35 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.

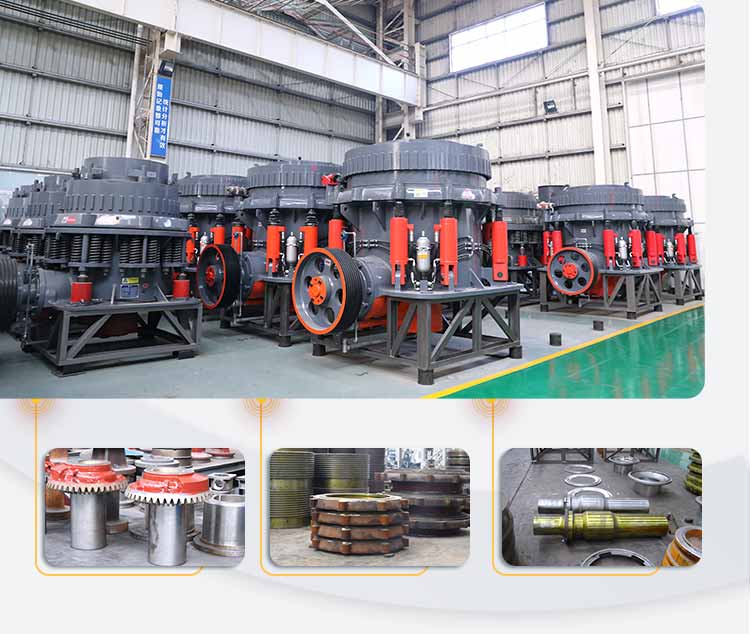

As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.
