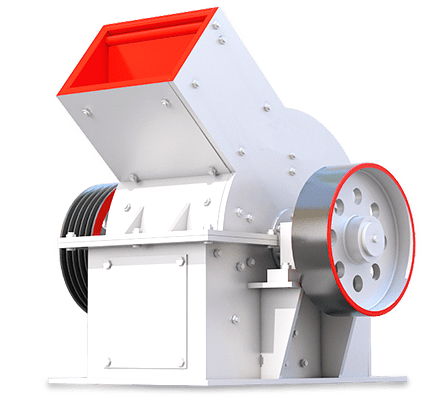

Hammer Crusher

Hammer crusher is suitable for crushing various medium hardness and brittle materials, with large crushing ratio, high production efficiency, complete equipment models, low costs and other advantages, well received by customers.

Hammer Crusher

Processing Materials of Hammer Crusher

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

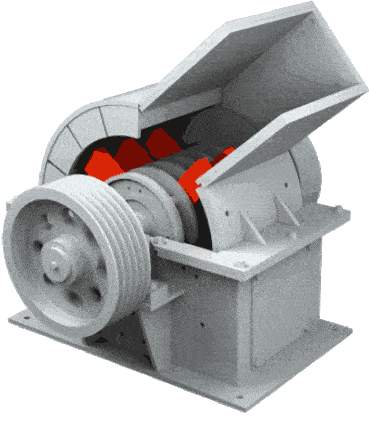

Working Principle of Hammer Crusher

When the hammer crusher is working, the motor drives the rotor to rotate at a high speed, and the material enters the crusher cavity evenly. The high-speed rotating hammer impacts the material, making the stones crushed. At the same time, the gravity of the material causes the material from the high-speed rotating hammer head rushes to the baffle and the screen bar in the frame, and the material larger than the screen hole size is blocked on the screen plate and continues to be crushed by the hammer until it is crushed to the required discharge size and finally discharged out of the machine through the screen plate.

1

Advantages of Hammer Crusher

1

Wide application

Hammer crusher is especially suitable for crushing limestone and medium hardness stones with compressive strength less than 200Mpa.

Reduce costs, low energy consumption

Need for second-stage crushing and shaping process, which can reduce the cost by about 40%, low energy consumption and low investment.

High efficiency

Modular design, by changing the cavity type, the conversion of coarse, medium and fine crushing can be realized, improving production efficiency

Long service life

High quality spare parts, easy maintenance, long lifetime.

Hot Issues of Hammer Crusher

1

Hot Sale Models of Hammer Crusher

PCΦ400×300, PCΦ600×400, small hammer crusher, small power consumption, low costs.

PCΦ1000×800, PCΦ1000×1000, large production capacity and high efficiency.

Hot Sale Production Capacity of Jaw Crusher

10-20t/h, 20-30t/h, 30-50t/h, etc, usually for small production scale, with low costs.

60-100t/h, 100-150t/h, 250-300t/h, etc, usually for medium and large production scale.

The estimated price of the service

Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

PCZ Heavy Hammer Crusher

Hammer Crusher

Model Feeding Size (mm) Processing Capacity(t/h)
PCZ1308 ≤380 60-160
PCZ1410 ≤450 80-210
PCZ1610 ≤480 100-230
PCZ1612 ≤500 120-350
PCZ1615 ≤550 200-550
PCZ1716 ≤600 400-850
PCZ1720 ≤650 500-1000
PCZ1920 ≤750 800-1500
PCZ2225 ≤1000 1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification Capacity(t/h) Power (kw)
PC 400×300 3-10 4P 11
PC 600×400 6-22 4P 22
PC 800×600 10-40 4P 55
PC 1000×800 15-50 4P 75
PC 1000×1000 18-75 4P 90
PC 1200×1200 22-95 4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Live Videos of Crusher Projects

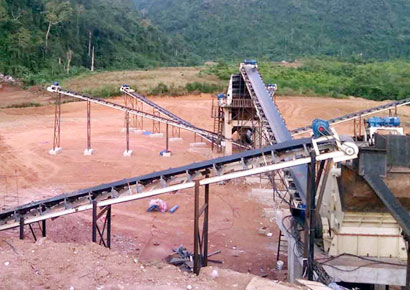

Related Projects of Hammer Crusher

Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.

Company Strength

As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.

One-stop Solution

We provide full and professional service system, including customized solution, fast delivery, spare parts, product warranty, product installation, etc.

Production Strength

with over 200 kinds of small, medium and large heavy processing equipment, such as vertical lathe,edge planer, large boring machine, bending roll, etc.
