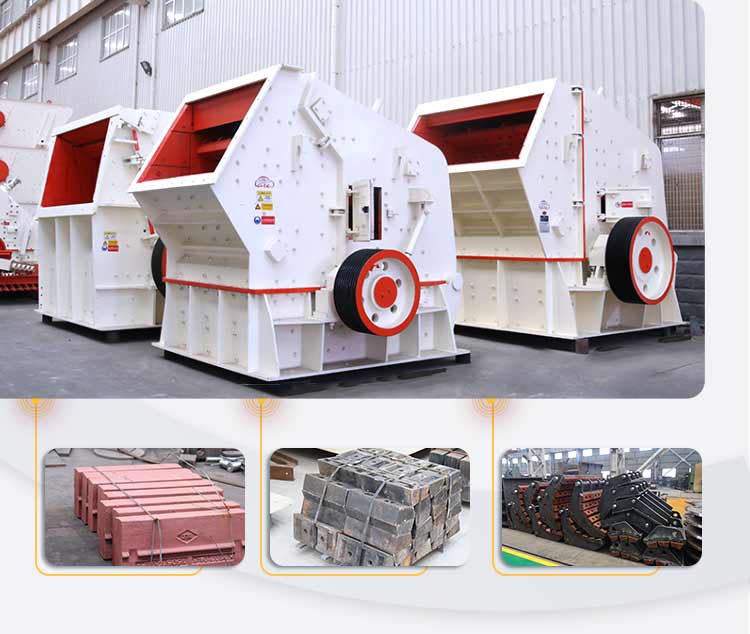

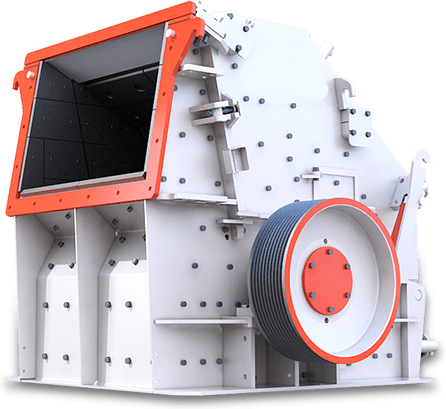

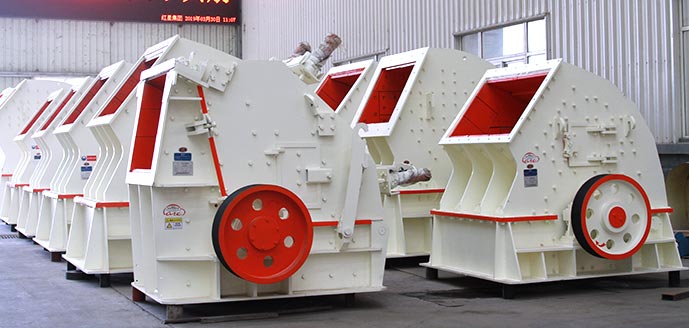

Impact crusher is used for secondary and fine crushing of stone and ores which compressive strength is not more than 350MPa, widely used in railway, highway, energy, cement, chemical, construction and other industries. The finished product is cubic, free of tension and cracks.
Production Capacity
30-800t/hInput Size
≤800mmOutput Size
≤40mm
It is widely used for secondary and fine (second and third stage) crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.
Driven by the motor, the rotor rotates at a high speed. When the material enters the impact area of the blower, it hits against with the blower, and then is thrown to the counterattack device to be crushed again, and then the materials bounce back to the hammer action area to be crushed again. This process is repeated. The material enters the first, second, and third counterattack chamber from large to small, and is repeatedly crushed until the material is crushed to the required particle size and discharged from the discharge port.
Large feed inlet, high crushing cavity, high hardness of processed materials and less stone powder.
The gap between the counterattack plate and the hammer can be easily adjusted, effectively controlling the output size and the particle shape is good.
Compact structure, strong rigidity, rotor with large moment of inertia.
High chrome plate hammer, impact resistance, abrasion resistance, high impact force.
PF1007, PF1010, small impact crusher, small power consumption, low costs.
PF1210, PF1214, PF1315, large production capacity and high efficiency.
30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.
70-100t/h, 100-150t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotes| Model | Feed Opening （mm） | Max.Feeding Size （mm） | Capacity （t/h） |
| PF-1007 | 400×730 | 300 | 30-70 |
| PF-1010 | 400×1080 | 350 | 50-90 |
| PF-1210 | 400×1080 | 350 | 70-130 |
| PF-1214 | 400×1430 | 350 | 80-180 |
| PF-1315 | 860×1520 | 500 | 100-280 |
| PF-1320 | 993×20000 | 500 | 140-380 |
| PF-1520 | 830×2040 | 700 | 200-550 |
| PF-1820 | 1260×2040 | 800 | 300-800 |
Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.
We provide full and professional service system, including customized solution, fast delivery, spare parts, product warranty, product installation, etc.
with over 200 kinds of small, medium and large heavy processing equipment, such as vertical lathe,edge planer, large boring machine, bending roll, etc.
