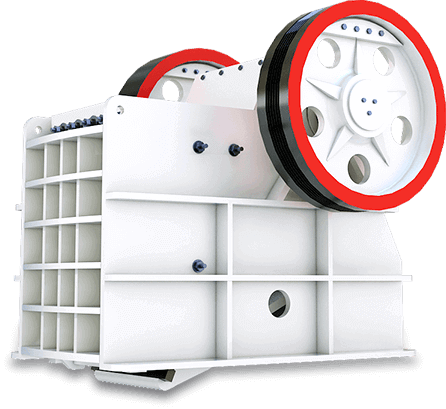

Jaw crusher is a kind of most widely used crushing equipment. With optimized structure and reliable performance, it is well received by customers. It can meet different crushing needs of stones and ores. We have full models jaw crusher for sale.
Production Capacity
10-900t/hInput Size
≤750mmOutput Size
≤165mm
It is widely used for primary secondary (first and second stage) crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.
The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw approaches the fixed jaw, and at the same time, the material is crushed to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle and the movable jaw becomes smaller. Under the role of pull rod and the spring, the movable jaw leaves the fixed jaw, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of motor and the periodic motion of movable jaw, realizing mass production.
The high-quality steel plate welded frame avoids casting defects, more stable and reliable.
It is made of high wear-resistant gear plates, which has high durability and high performance. The movable jaw assembly is made of high-quality cast steel, more firm and reliable.
The new automatic control system realizes one-button adjustment, reliable and easy to maintain.
The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output. Its crushing ratio is large and the product size is uniform.
PE 250400, PE 400600, small jaw crusher, small power consumption, low costs.
PE 600900., PE 7501060, large production capacity and high efficiency.
10-20t/h, 20-30t/h, 30-50t/h, etc, usually for small production scale, with low costs.
60-100t/h, 100-150t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesPE/PEX Jaw Crusher
HD German Jaw Crusher
| Model | Max.Feeding size (mm) | Capacity (t/h) |
| PE 150×250 | 125 | 1-3 |
| PE 200×300 | 180 | 2-6 |
| PE 200×350 | 180 | 3-10 |
| PE 250×400 | 210 | 5-21 |
| PE 400×600 | 340 | 16-64 |
| PE 500×750 | 425 | 40-110 |
| PE 600×750 | 500 | 80-240 |
| PE 600×900 | 500 | 50-160 |
| PE 750×1060 | 630 | 110-320 |
| PE 900×1200 | 750 | 220-380 |
| PE 1200×1500 | 1020 | 400-1000 |
| PE 1500×1800 | 1200 | 500-1200 |
| PEX 150×750 | 120 | 8-25 |
| PEX 250×750 | 210 | 13-35 |
| PEX 250×1000 | 210 | 16-52 |
| PEX 250×1200 | 210 | 20-61 |
| PEX 300×1300 | 250 | 16-105 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Feeding opening size(mm) | Max.Feeding size（mm） | Capacity (t/h) |
| HD72(57) | 460×720 | 425 | 50-120 |
| HD86(69) | 580×860 | 500 | 60-280 |
| HD98(751) | 680×980 | 630 | 110-410 |
| HD110(912) | 850×1100 | 750 | 230-550 |
| HD125 | 950×1250 | 900 | 280-750 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Our products have been exported to over 90 countries, such as Philippine, Pakistan, Vietnam, Papua New Guinea, Feiji, Tanzania, Ghana, Cameroon, Kenya, South Africa, Nigeria, Somalia, etc.
As leading manufacturer and supplier in China, we have three large sized modern workshops, more than 260000 square meters, reliable and trustworthy. We are dedicated to be responsible for every procedure, every product and every customer.
We provide full and professional service system, including customized solution, fast delivery, spare parts, product warranty, product installation, etc.
