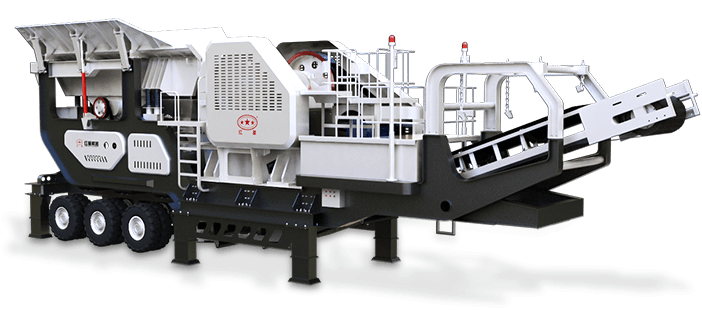

Mobile jaw crusher, is a movable crushing equipment composed of three major systems of feeding, crushing and conveying. It adopts an integrated operation method and eliminates the installation of complex site infrastructure and auxiliary facilities.
Production Capacity
30-900t/hInput Size
≤750mmOutput Size
≤60mm
The materials are uniformly transported into the jaw crusher by the feeder. After the initial crushing by the jaw crusher, the closed circuit system is formed through the circular vibrating screen to realize the circular crushing of the materials. The materials after primary crushing will be conveyed out by belt conveyor, thus forming continuous crushing operation.
It can be directly operated, eliminating tedious infrastructure installation and labor time consumption
The feeding guard is hydraulically raised and lowered, which is convenient for loading and unloading, convenient for fixing, stable and reliable.
One person can operate, the work is more stable, the overall output is increased, and the finished product has complete specifications and good particle shape.
Switch freely between electtic power and diesel, keeping in good condition anytime and anywhere.
FTM938HD86, throughput 80-100t/h, more popular on the market.
FTM1149HD98, FTM1349HD110, better choice for medium and large production needs.
30-50t/h, 60-80t/h, etc, usually for small production scale, with low costs.
100-130t/h, 150-200t/h, 250-300t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesWheel-type Mobile Jaw Crusher
Tracked Jaw Crusher
Model FTM938HD86 and FTM1149HD98
| Model | FTM938HD86 | FTM1149HD98 |
| Transportation lenght(mm) | 12600 | 13500 |
| Transportation Width(mm) | 2600 | 2700 |
| Transportation Height(mm) | 3870 | 4200 |
| Maximum Lenght(mm) | 12500 | 14000 |
| Maximum Width(mm) | 4100 | 4500 |
| Maximum Height(mm) | 4100 | 4900 |
| Weight(t) | 39 | 57 |
| tIRE Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD86 | HD98 |
| Maximum Feeding Size(mm) | 500 | 550 |
| Discharge opening range | 50-150 | 75-175 |
| Capacity(t/h) | 85-275 | 110-350 |
| Vibrating Feeder | ZSW380×95 | ZSW420×110 |
| Main Belt Conveyor | B800×8.5m | B1000×9.5m |
| Side-opening Belt conveyor(optional) | B500×3m | B650×3.5m |
| Gensrt(optional) | 200KW | 250KW |
| Iron separator(optional) | RCYD(C)-8 | RCYD(C)-10 |
Model FTM1349HD110 and FTM1349HD125
| Model | FTM1349HD110 | FTM1349HD125 |
| Transportation lenght(mm) | 14500 | 15200 |
| Transportation Width(mm) | 2800 | 2900 |
| Transportation Height(mm) | 4450 | 4500 |
| Maximum Lenght(mm) | 16100 | 16700 |
| Maximum Width(mm) | 5100 | 5100 |
| Maximum Height(mm) | 5000 | 5300 |
| Weight(t) | 55 | 65 |
| Tire Configuration | Dualaxial | Dualaxial |
| Jaw Crusher | HD110 | HD125 |
| Maximum Feeding Size(mm) | 660 | 800 |
| Discharge opening range | 100-200 | 125-225 |
| Capacity(t/h) | 215-510 | 280-650 |
| Vibrating Feeder | ZSW490×130 | ZSW490×130 |
| Main Belt Conveyor | B1000×11m | B1200×11m |
| Side-opening Belt conveyor(optional) | B650×4m | B650×4m |
| Gensrt(optional) | 270KW | 400KW |
| Iron separator(optional) | RCYD(C)-10 | RCYD(C)-12 |
Model WT96 and WT106
| Model | WT96 | WT106 | |
| Dimensions of Transmission Devices | Length | 14200mm | 15200mm |
| Width | 2900mm | 3000mm | |
| Height | 3470mm | 3600mm | |
| Weight | 38t | 50t | |
| Feeder | Hopper Volume | 5m³ | 6m³ |
| Loading Height | 3900mm | 4100mm | |
| FeederModel | GZDT3895 | GZDT1145 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Crusher | Model | CJ96 | CJ120 |
| Inlet Dimensions | 930×580mm | 1060×700mm | |
| Max.Feeding Size | 480mm | 560mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
800×9000mm | 1200×12000mm |
| Dumping Height | 3100mm | 3200mm | |
| Iron Remover | Model | RCYQ-8 | RCYQ-10 |
| Diesel Engine | Power | 96kw | 132kw |
| Manufacturer | Carter Perkins | Carter Perkins | |
| The Main Machine | Power | 112.9kw | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | Wired/Wireless (optional) | |
Model WT120
| Model | WT120 | |
| Dimensions of Transmission Devices | Length | 15200mm |
| Width | 3200mm | |
| Height | 3700mm | |
| Weight | 65t | |
| Feeder | Hopper Volume | 6m³ |
| Loading Height | 4300mm | |
| FeederModel | GZDT1245 | |
| Unearthed Belt Conveyors | Dimensions (Width×Length) |
1200×12000mm |
| Dumping Height | 3400mm | |
| Crusher | Model | CJ120 |
| Inlet Dimensions | 1200×870mm | |
| Max.Feeding Size | 700mm | |
| Main Belt Conveyor | Dimensions (Width×Length) |
1200×12000mm |
| Dumping Height | 3400mm | |
| Iron Remover | Model | RCYQ-10 |
| Diesel Engine | Power | 132kw |
| Manufacturer | Carter Perkins | |
| The Main Machine | Power | 196.2kw |
| Ways of Controlling | Wired/Wireless (optional) | |
