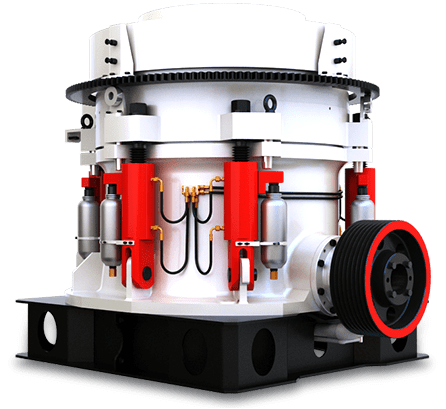

Hydraulic Cone Crusher

Hydraulic cone crusher realizes the functions of hydraulic adjustment, overload protection and stable production, with higher crushing efficiency and larger production capacity.

Hydraulic Cone Crusher

Processing Materials of Hydraulic Cone Crusher

It is widely used for primary secondary fine crushing of granite, river stone, quarry stone, rock, boulder, gravel, aggregate, basalt, limestone, gold ore, iron ore, chrome ore, etc. Adjustable final size meeting different needs. Following is common final output size.

Working Principle of Hydraulic Cone Crusher

When working, the electric motor drives the horizontal shaft and eccentric shaft to move, thereby causing the moving cone to make a conical rotation. During this movement, the moving cone will approach or move away from the fixed cone uninterruptedly, so that the material in the cavity will be impacted and crushed. Then the crushed material is discharged downward through the transmission device.

undefined

Advantages of Hydraulic Cone Crusher

undefined

Large crushing ratio

The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.

Laminated crushing

Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.

Reliable operation, easy maintenance

Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.

Hot Issues of Hydraulic Cone Crusher

undefined

Hot Sale Types of Hydraulic Cone Crusher

Multi-cylinder hydraulic cone crusher, more popular in market.

Full hydraulic cone crusher, single-cylinder hydro cone crusher, higher crushing efficiency and capacity.

Hot Sale Capacity of Hydraulic Cone Crusher

30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.

80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.

The estimated price of the service

Price range is about 4000-500,000 dollars. Click for specific price.

Get quotes

Technical parameters

Model Cavities Maximum Feeding size(mm) Capacity(t/h)
HPM200 C1 145 160~250
C2 100 145~250
C3 75 120~250
F1 60 108~210
F2 45 81~210
HPM300 C1 190 230~445
C2 170 200~445
C3 120 180~445
F1 85 160~220
F2 40 140~220
HPM400 C1 240 270~630
C2 160 243~630
C3 90 210~630
F1 75 162~370
F2 40 126~370
HPM500 C1 270 365~790
C2 230 328~790
C3 165 280~790
F1 105 202~450
F2 75 158~450
HPM800 C1 280 616~1100
C2 240 522~1100
C3 175 380~1100
F1 125 328~730
F2 75 270~730

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
