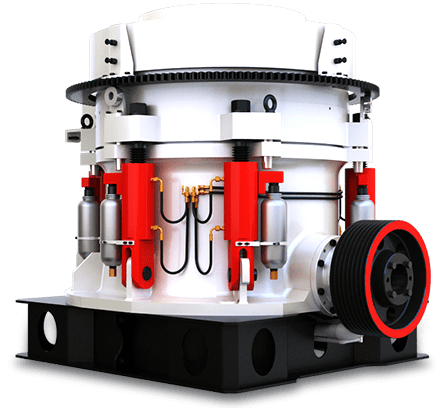

Single-cylinder hydro cone crusher realizes the functions of hydraulic adjustment, overload protection and stable production, with higher crushing efficiency and larger production capacity.
Production Capacity
36-1000t/hInput Size
≤370mmOutput Size
≤25mm
When working, the electric motor drives the horizontal shaft and eccentric shaft to move, thereby causing the moving cone to make a conical rotation. During this movement, the moving cone will approach or move away from the fixed cone uninterruptedly, so that the material in the cavity will be impacted and crushed. Then the crushed material is discharged downward through the transmission device.
The combination of high-performance crushing cavity and high crushing frequency greatly improves the processing capacity of the cone crusher.
Adopting the principle of inter-granular laminated crushing, the crushed products are mostly cubic structure, which reduces the needle-like materials to a greater extent.
Easy to operate and maintain, easy and quick to adjust the discharge opening, saving time and effort during maintenance, especially the liner is easy to quickly replace, reducing downtime.
SC110, SC160, more popular in market.
SC250, SC315, higher crushing efficiency and capacity.
30-70t/h, 50-90t/h, etc, usually for small production scale, with low costs.
80-100t/h, 100-150t/h, 300-350t/h, etc, usually for medium and large production scale.
Price range is about 4000-500,000 dollars. Click for specific price.
Get quotesSC-S series of single cylinder hydraulic cone crusher parameters:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100S | C1 | 250 | 85-170 |
| C2 | 200 | 70-130 | |
| SC160S | C1 | 360 | 125-345 |
| C2 | 300 | 108-305 | |
| SC250S | C1 | 450 | 267-605 |
| C2 | 400 | 225-515 | |
| SC315S | C1 | 560 | 349-1050 |
| C2 | 500 | 318-892 |
Technical parameters of SC series single cylinder hydraulic cone crusher:
| Model | Cavities | Feeding Size （mm） | Capacity（t/h） |
| SC100 | F1 | 150 | 45-135 |
| F2 | 90 | 43-118 | |
| F3 | 38 | 25-40 | |
| SC160 | F1 | 200 | 69-215 |
| F2 | 115 | 57-184 | |
| F3 | 35 | 70-90 | |
| SC250 | F1 | 240 | 116-396 |
| F2 | 140 | 97-346 | |
| F3 | 70 | 90-251 | |
| SC315 | F1 | 275 | 177-662 |
| F2 | 215 | 209-643 | |
| F3 | 175 | 162-552 | |
| F4 | 85 | 175-325 | |
| SC560 | F1 | 300 | 448-1512 |
| F2 | 195 | 380-1373 | |
| F3 | 90 | 357-912 | |
| SC750 | F1 | 370 | 394-2181 |
| F2 | 300 | 342-2020 | |
| F3 | 230 | 267-1814 | |
| F4 | 120 | 248-1165 | |
| F5 | 85 | 185-1170 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
